Formulas

Formulas are Rhai scripts that analyze retained session history or interact with the UART. The interpreter, regex engine and built-in formulas are embedded in Sericon. Custom scripts run without installing Python or another interpreter.

Run a formula

Open Ctrl-] m → Formulas, or Ctrl-] x. Select a formula, edit any parameters, timeout or output directory, then choose Run formula. Runs continue while the terminal returns to live output or detaches.

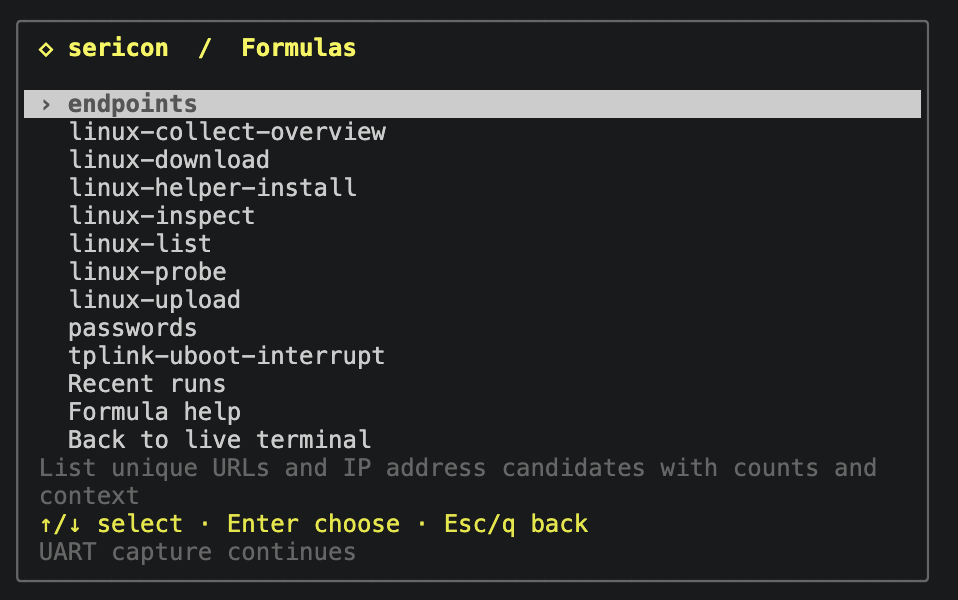

The screenshot includes tplink-uboot-interrupt, a custom example registered on the pictured host. It is not a built-in formula.

sericon formulas list
sericon formulas run endpoints
sericon formulas runs
sericon formulas read RUN_ID

Pass --session SESSION_ID when more than one session is running. run returns a job ID immediately. Poll read for completion, progress and errors; page results with --after NEXT_CURSOR while has_more is true. Cancel with sericon formulas cancel RUN_ID.

Built-in formulas

Built-in	Results
passwords	Possible password, passwd, pwd, passphrase, PSK, and Wi-Fi key assignments, with context. Empty prompts and common redaction markers are excluded.
endpoints	URLs with ports/paths preserved and syntactically valid IPv4/IPv6 candidates. IP-like version numbers can still be candidates; inspect the context.
linux-probe	Check the ready Linux shell's existing transfer utilities. Interactive.
linux-list	Browse a DUT directory with the path parameter. Interactive.
linux-download	Verified DUT download with path, name, and explicit output_dir. Interactive.
linux-helper-install	Upload and verify a bundled static helper using arch and an existing writable DUT directory in path. Interactive; writes DUT files explicitly.
linux-upload	Upload absolute host source to new DUT path, using helper; optional executable sets mode 0700. Interactive.
linux-inspect	Inspect device identity and resources using helper; emits one result per section. Interactive.
linux-collect-overview	Save inspector results and a hash manifest using helper and explicit output_dir. Interactive.

The passwords and endpoints formulas scan retained UART history, not downloaded files. They assemble text across reads, normalize terminal controls, group identical values and preserve up to eight evidence locations per result. Logging-off sessions report when older context has been evicted.

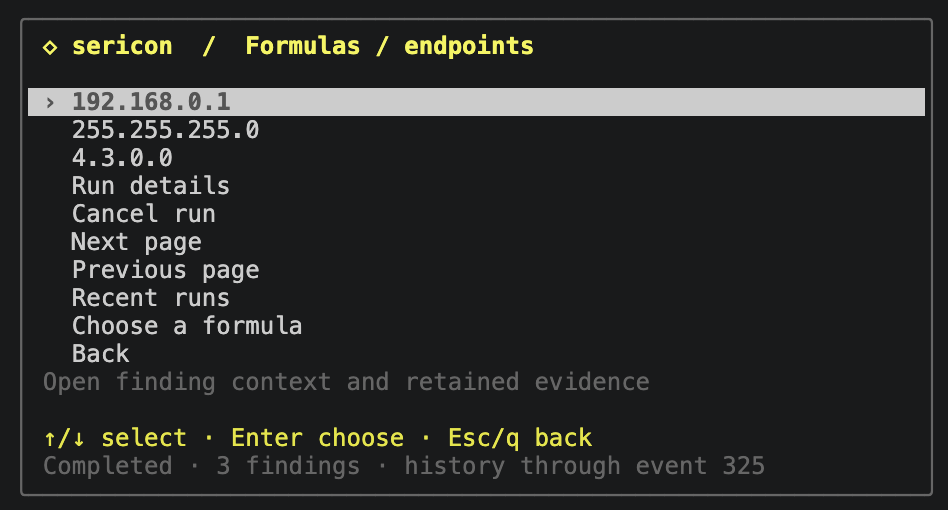

Results are candidates: the screenshot includes 4.3.0.0, which may be a version number. Open a result to inspect its evidence. Run the scan again to include output received after its snapshot boundary.

Write an analysis formula

Save this as boot-errors.rhai:

scan_regex("(?i)error[ :=]+([0-9]+)", "boot-error", 1);

Register and run it against an existing session:

sericon formulas put boot-errors --file boot-errors.rhai \
  --description 'Group numeric boot errors'
sericon formulas validate boot-errors
sericon formulas run boot-errors --session SESSION

The run returns immediately with an ID. Read it with sericon formulas read RUN --session SESSION. States are running, completed, failed, or cancelled. Results include counts and evidence locations. A scan takes a snapshot boundary at run start; running it again includes newer output.

history(after) supports custom analysis over ordered event pages through that boundary. Each data event has an exact bytes blob as well as decoded text. RX events can split a character, line, or prompt. Preserve incomplete data across pages; scan_regex already handles line assembly and terminal colour sequences. TX is grouped by actor and kept separate from RX while scanning.

Parameters and configuration

In the terminal, Ctrl-] x opens the shared arrow-key menu. Choose a formula, then select each setting to edit it; boolean rows toggle with Enter. Text and number prompts use Enter to save, Ctrl-U to clear, and Esc to cancel. Choose Run formula when ready. Timeout and host output directory are also selectable fields. Edit advanced JSON remains available for the complete options object. Required fields and value types are checked before the formula runs.

Formula lists, configuration, recent runs and results use the same popup style as Ctrl-] m. Arrows/j/k or the wheel moves, Enter chooses, and Esc/q goes back; Home/End selects the first/last row. Source, help, run details, cancellation and result-page controls have selectable rows. Ctrl-] b returns directly to live, leaving background jobs running. Existing letter shortcuts still work.

The optional config is normally ~/.config/sericon/config.toml. Each formula can use a script path relative to that file or inline source, with typed parameters:

[[formulas]]
name = "find-codes"
description = "Find a chosen class of numeric messages"
source = '''
scan_regex(params.pattern, "message-code", 1);
'''

[formulas.parameters.pattern]
type = "string"
description = "Regex with the code in capture group 1"
default = 'code=([0-9]+)'

sericon formulas run find-codes --params '{"pattern":"ERROR ([0-9]+)"}'

Parameter types are string, integer, number, and boolean. A parameter can have a default or be required = true. Unknown parameters and wrong types are errors. put --parameters accepts the same schema as JSON. --config FILE before formulas, attach, or mcp selects another config and its adjacent library. Paths in a library TOML definition are relative to that definition.

sericon formulas show NAME includes source and a SHA-256 revision of the resolved definition. A run snapshots source, metadata, and arguments, so editing a formula affects future runs. Duplicate names are errors. put --replace updates definitions in the managed library; edit config entries directly.

Interactive UART formulas

An interactive formula reserves the shared session writer before its first statement. If another client has input reserved, the run fails with a busy error. It never takes over another writer automatically. All clients continue receiving traffic and the human can take over with Ctrl-] t.

This example sends a user-supplied command and waits for a user-supplied prompt:

mark();
send_line(params.command);
let reply = expect_text(params.prompt, params.wait_ms);
if !reply.matched {
    throw "Prompt timed out; inspect the UART before retrying";
}
emit(#{response: reply.text});

Register the script with --interactive and parameter definitions:

sericon formulas put command-response --file command-response.rhai --interactive \
  --parameters '{"command":{"type":"string","required":true},"prompt":{"type":"string","required":true},"wait_ms":{"type":"integer","default":3000}}'
sericon formulas validate command-response \
  --params '{"command":"version","prompt":"=>"}'
sericon formulas run command-response --session SESSION \
  --params '{"command":"version","prompt":"=>"}'

Choose a command and prompt appropriate to the connected target. The example is an authoring pattern, not a built-in bootloader recipe.

mark() records the RX boundary before sending and discards previously buffered RX. This prevents an earlier prompt from satisfying a new exchange and allows a fast reply to be retrieved from history. expect matches RX only, including matches split across events; it preserves bytes after the match for the next read. send_line appends CR; send and send_bytes append nothing. No timeout automatically resends a command. A lost write response can have an unknown outcome, so a formula should inspect the session before retrying.

expect uses the same Rust regex dialect as terminal search, over an RX byte buffer. It can match across newlines. expect_text and expect_bytes offer literal matching. Successful results include exact blobs (bytes, before, match_bytes) and convenience text/capture groups. Timeout returns matched = false and leaves the buffer intact. An unread history gap is an error, so missing data cannot silently become part of a firmware dump.

To arm a boot-interrupt formula, wait for the configured boot message, send the configured raw interrupt bytes, and verify the resulting prompt. Run it before the reset/power event. Formula timing is local; there is no AI round trip between observing a prompt and sending input. The engine does not reset targets or control relays automatically.

TP-Link MT7628 boot interruption

The custom tplink-uboot-interrupt recipe was tested on a TP-Link router with Ralink/MT7628 U-Boot 1.1.3 at 115200 baud, using Tigard. It is a target-specific example, not a built-in or a recipe for every TP-Link router.

sericon formulas put tplink-uboot-interrupt \
  --file formulas/examples/tplink-uboot-interrupt.rhai --interactive \
  --description 'Interrupt TP-Link MT7628 U-Boot with tpl bursts'
sericon formulas run tplink-uboot-interrupt --timeout-ms 90000
sericon formulas read RUN

Run from the source checkout when registering the example, or download the recipe above and adjust --file to its location. Once registered, use the run command or choose it under Ctrl-] x. Add --session SESSION if several sessions are running. After the run reports stage: armed, power-cycle the connected router within 60 seconds. The formula waits for a fresh U-Boot banner and sends repeated tpl bytes until it sees MT7628 #, with a limit of 100 bursts. The short-write version missed this router's window; the working version uses 768-byte bursts.

On success it allows the last burst to finish, clears trailing input with Ctrl-U and Enter, verifies a fresh prompt, and releases input ownership. It reports an error if boot proceeds to the kernel or no prompt appears. A failed interaction retains input for recovery with Ctrl-] t. The recipe does not control power or issue flash commands. This vendor build rejected help even at its U-Boot prompt; interruption does not establish which bootloader commands are available. See validation scope for results.

Binary artifacts and long runs

Use --output-dir DIR to allow explicit artifact output. Each run creates a private formula-RUN directory there. Artifact names are plain filenames; existing files are never overwritten. This works with --no-log because it is an explicit export request.

artifact_open("capture.bin");
let received = 0;
while received < params.length {
    let chunk = read_bytes(min(4096, params.length - received), 3000);
    if chunk.len == 0 { throw "Receive timed out"; }
    received += artifact_write("capture.bin", chunk);
    progress(received, params.length, "Receiving binary data");
}
artifact_close("capture.bin");

For bootloader text dumps, issue bounded memory-read commands, check returned addresses and lengths, extract hex capture groups with matches, convert them with hex_decode, and append the decoded bytes. Do not treat command echoes, address columns, or printable ASCII columns as payload. Target-specific commands and parsers belong in the custom formula; no bootloader dump formula is bundled.

Runs report artifact paths, actual bytes written, SHA-256 hashes, and completion state. Errors/cancellation preserve partial files. A formula must check expected lengths and addresses before marking an artifact complete. Explicitly closed files remain complete if a later step fails.

The default run deadline is five minutes; --timeout-ms can extend it to 24 hours. Poll run status with read, or inspect it in Ctrl-] x → r. Four runs may execute concurrently, with the latest 16 retained in session memory. Logged sessions archive the definition, arguments, and final results as formula-RUN.json beside the session journal. No-log sessions keep these in memory. A process crash can leave an archive marked running; it is not a resumable job.

sericon formulas cancel RUN --session SESSION requests cancellation. Cancellation cannot undo transmitted bytes; an in-flight write can finish. Human takeover revokes the formula writer even after the human releases input. Failed/cancelled interactions after sending, and successful formulas with unfinished raw input, retain input ownership for recovery. Use Ctrl-] t, inspect the target, and finish or cancel the input. Explicit release() is available for known boundaries.

Session stop/disconnect ends its runs. Run IDs remain queryable only while that session broker is alive; retained JSON archives and explicit artifacts survive. Stopping a terminal view or disconnecting an AI client leaves the session and its formulas running.

Files formulas

Embedded Linux downloads and directory browsing are available through the interactive linux-probe, linux-list, and linux-download formulas and the matching Rhai host functions. They use the same jobs, cancellation, writer coordination and artifact records as other formulas. See the Files guide for target requirements, console-noise handling and examples. They accept an optional helper path for the static C backend. linux-helper-install explicitly uploads a bundled helper using arch and the existing parent directory in path. The same operation is available as linux_helper_install(arch, directory) in Rhai. It reports the installed path after byte-for-byte verification and a capability check. See helpers.

Protocol-2 helpers add linux-upload, linux-inspect and linux-collect-overview. Upload takes an absolute host source, new DUT path, helper and optional boolean executable; it publishes a verified new file without executing it. Inspector takes helper and emits one record per section. Collection takes the same helper and explicit --output-dir, retaining raw section bytes, timestamps and hashes in JSON artifacts. These are interactive operations through the shared writer, with the same CLI/MCP/menu access. See uploads and inspection.

emit(linux_upload("/tmp/test.bin", "/var/tmp/test.bin", params.helper, false));
emit(linux_collect_overview(params.helper));

This example requires interactive=true, a string helper parameter and an explicit host output directory. Existing destinations are refused.

AI authoring and execution

CLI-capable agents can create Rhai files, use put, and launch/read runs through the same commands. MCP exposes the full workflow:

1. sericon_formula_api supplies the API and execution limits.
2. sericon_formula_validate accepts a definition or registered name plus optional parameter values. Validation checks syntax and types without running code; runtime function names and device-specific behaviour still need testing.
3. sericon_formula_put saves a definition containing name, source, optional description, interactive, and parameters. replace = true updates it.
4. sericon_formula_run takes an explicit session, formula name, params, optional timeout_ms, and optional absolute output_dir.
5. sericon_formula_read returns progress, results, artifacts, and errors. Page results using next_cursor; has_more describes currently available results.
6. sericon_formula_cancel stops further work. sericon_formula_runs lists jobs; sericon_formulas lists definitions; sericon_formula_show inspects source.

The initiating client's actor is recorded on the run, and transmissions carry formula:RUN in the existing RX/TX journal. A long run does not need a long-lived MCP request or continuous model attention.

API and limits

Run sericon formulas api for the embedded reference. Scripts have bounded operations, call depth, strings, collections, RX buffers, results, and regex compilation. Native helpers check cancellation and deadlines. Large captures and dumps should be processed incrementally. Limits produce explicit errors, with already emitted results and written artifacts retained. The built-in scans group findings in memory and publish them after scanning; an error before publication is reported as a failed scan, never an empty success.

The language has no shell/process API, external module imports, generic host file-read API, or direct serial-device opens. linux_upload explicitly reads one selected host source in an interactive formula. File output uses only the explicit artifact directory. See the Rhai language guide for syntax and standard collection/string operations.
